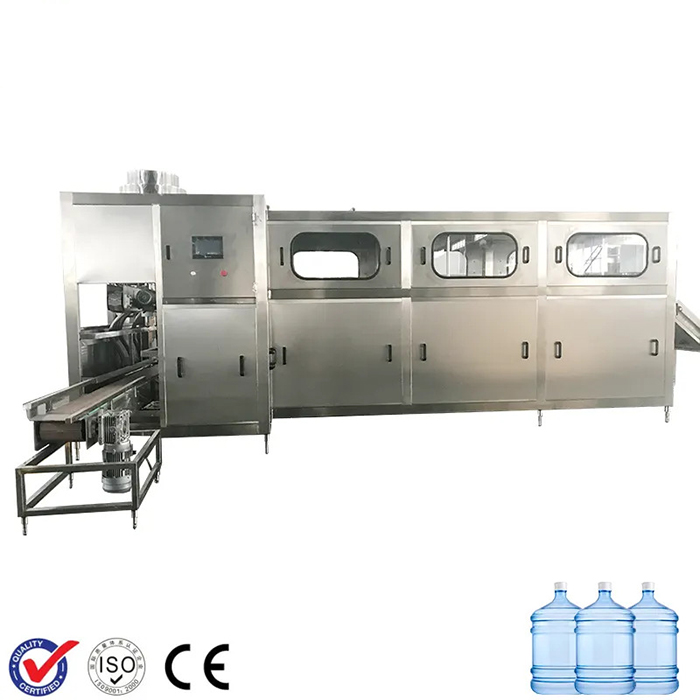

Pure water filling machine / equipment / production line is suitable filling water, working steable with famous electrical components and working very stable.
This Wash-filling-capping 3-in-1 unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The Wash-filling-capping 3-in-1unit: Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Karakteristik
1. Nggunakake akses angin lan ngalih roda ing teknologi sing gegandhengan langsung; batal skru lan conveyor chain, iki ndadekake owah-owahan ing botol dadi luwih gampang.
2. transmisi Botol nggunakake teknologi bottleneck klip, transformasi bentuk botol ora perlu nyetel tingkat peralatan, mung ngganti sing gegandhengan karo sudhut pelengkung, rodha lan nilon cukup ..
3. Klip mesin cuci baja stainless steel sing dirancang khusus lan tahan lama, ora ana sentuhan karo lokasi sekrup saka tutuk botol kanggo nyegah polusi sekunder.
4. Klep aliran aliran gravitasi gedhe kanthi cepet, ngisi kanthi cepet, ngisi akurat lan ora ana sing kelangan.
5. Kurangé populasi spiraling nalika botol output, ndandani bentuk botol ora perlu nyetel dhuwur saka chain conveyor.
6. Host nggunakake teknologi kontrol otomatis PLC majeng, komponen listrik utama saka perusahaan sing misuwur kayata Mitsubishi, Prancis Schneider, OMRON.
Parameter teknis
| Data Teknis | ||||
| Model | CGF14124 | CGF18186 | CGF24248 | CGF323210 |
| Nomer ngumbah, ngisi, ngepak | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-8 |
| Ngasilake kapasitas; Jumlah botol (600ml) / jam | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 |
| Spesifikasi botol sing bisa ditrapake (mm) | = 50-108 H = 170-340 330ml-2.25L | |||
| Tekanan (kg / cm2) | 2~3 | |||
| Daya motor (kw) | Motor utama 1.5kw | Motor utama 2.2kw | Motor utama 3kw | Motor utama 4kw |
| Metu pompa vakum njaba | 0.75 | 1.1 | 1.5 | 2.2 |
| Ukuran sakabèhé (mm) (LxWxH) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Bobot (kg) | 2500 | 3500 | 4200 | 5500 |
| Data Teknis | |||
| Model | CGF404010 | CGF484812 | CGF606015 |
| Nomer ngumbah, ngisi, ngepak | 40-40-10 | 48-48-12 | 60-60-15 |
| Kapasitas ngasilake: Jumlah botol (600ml) / jam | 16000-20000 | 20000-24000 | 25000-30000 |
| Spesifikasi botol sing bisa ditrapake (mm) | = 50-108 H = 170-340 330ml-2.25L | ||
| Tekanan (kg / cm2) | 2~3 | ||
| Daya motor (kw) | Motor utama 7.5kw | Pit motor utama 9.5kw | Motor utama 12kw |
| Metu pompa vakum njaba | 2.2 | 3 | 4 |
| Ukuran sakabèhé (mm) (LxWxH) | 4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Bobot (kg) | 6800 | 7600 | 9800 |
Rincian cepet
Jinis: Mesin ngisi, Umum
Kondisi: Anyar
Aplikasi: Mesin & Hardware
Jinis Kemasan: Botol
Bahan Kemasan: Plastik
Gred otomatis: Otomatis
Jenis Dipandu: Mekanikal
Tegangan: 380v
Daya: 1.5-7.5KW
Panggonan Asal: Shanghai, China (Mainland)
Jeneng merek: NAPCK
Ukuran (L * W * H): Selaras
Bobot: 4500KGS
Sertifikasi: ISO CE
Layanan sawise adol sing diwenehake: Engineers kasedhiya kanggo mesin layanan ing luar negeri
Dianggo: Outer
Pangolahan: Mesin Isi
Jinis Processing: Banyu
Jeneng: 5 galon laras pengisi banyu laras
